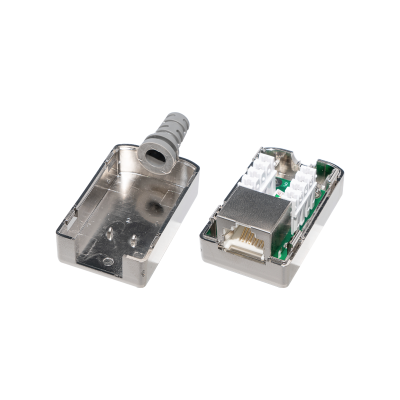

CAT 6 FTP Shielded Inline RJ45 Socket

Product Code: 15-1171

Cat6 inline 8p8c Shielded socket can be terminated in a few minutes with a high quality connection. Meets performance requirements for RJ45 sockets up to Category 6.

View Specification

£5.99 ex Vat

£7.19 Inc.VAT

Availability: Medium Stock

Shielded Cat6 inline socket can be terminated in a couple of minutes with a high quality connection. Meets all performance requirements for an RJ45 socket up to Category 6. Termination is by way of industry standard IDC’s so that a standard tool can be used. The socket assembly is packaged in a convenient and compact snap-together housing. Straightforward termination for production lines or in the field. High performance extension leads and adaptors can be made quickly and at a competitive cost.

• Category 6 ANSI/TIA-568-B.2-1 performance at component level
• Industry standard IDC termination
• Integral compact housing (22x27x42mm plus grommet)
• Excellent cable retention by way of cable tie supplied
• Flexible PVC grommet for strain relief
• Supplied with instruction leaflet for standard wiring versions

• Weight: 18g approx
• FTP Shielded
• Plating: PD20µ"/0.5µm + gold 0.8 µ"/0.02µm
• Suitable for 23-26 AWG/ 0.405-0.573 mm solid or stranded cable

Electrical Performance
• Contact resistance: 30 milliohm max
• Insulation resistance: 100 megohm min
• Dielectric withstanding voltage: 500V AC for 1 minute
