14-3100: USB Type C 3.1 Panel Mount Cable

USB-C Panel Mount Extension Cable — Male to Female

Extend your USB-C port cleanly through a panel, enclosure, or PCI bracket without sacrificing charging power, video output, or data speed. The 14-3100 is a Type-C male-to-female extension cable designed for front-panel mounting, with screw-hole fixing on the female end for a secure, professional install.

Product & Part Numbers

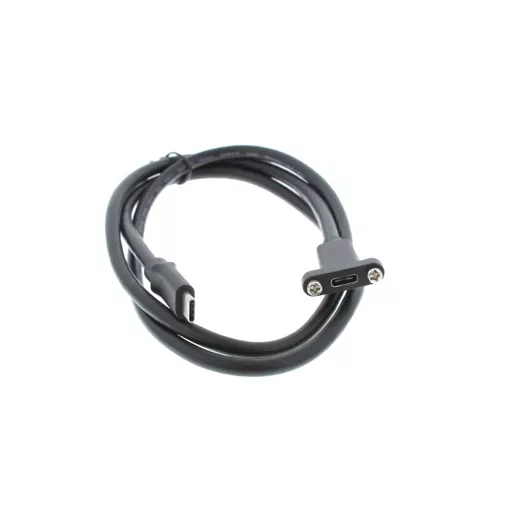

14-3100-010 – USB Type C 3.1 Panel Mount Cable (10G, 3A)

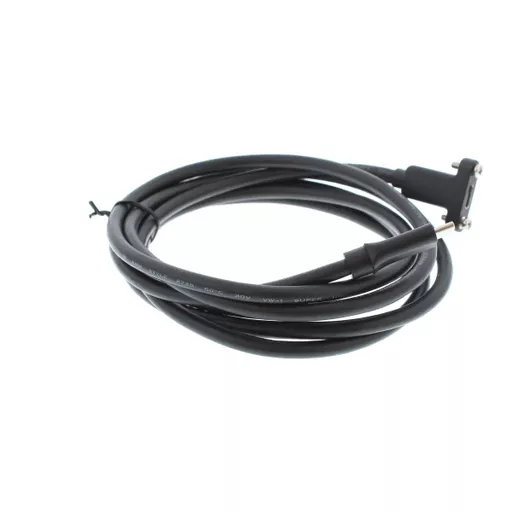

14-3100-020 – USB Type C 3.1 Panel Mount Cable (5G, 3A)

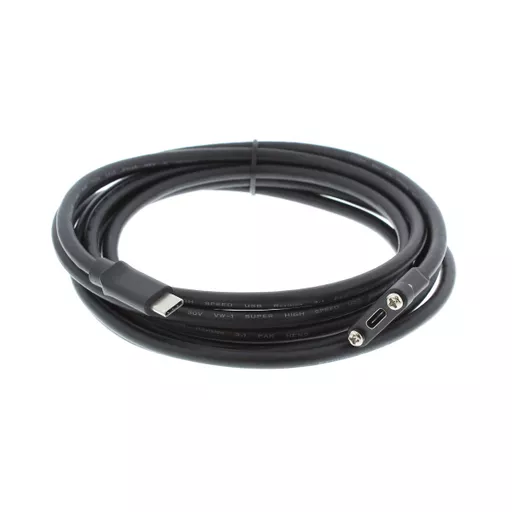

14-3100-030 – USB Type C 3.1 Panel Mount Cable (5G, 3A)

Key Features

Panel Mount Design – Screw-hole female connector mounts securely to PCI brackets, enclosure panels, or the front of a computer case
Reversible Connectors – USB-C connectors on both ends insert either way up, so there's no wrong way to plug in
3-in-1 Functionality – Supports charging, video transmission, and data transmission over a single cable
DisplayPort Alt Mode Video – Passes 4K@60Hz video over USB-C for connecting a laptop or phone to an external monitor
High-Speed Data Transfer – Up to 10Gbps data transmission (model dependent — see specification table)
Backwards Compatible – Works with earlier USB standards (USB 2.0) for general-purpose devices, in addition to full-speed USB 3.1 hosts
Broad Compatibility – Works with USB-C laptops, tablets, and smartphones, including MacBook Pro, Dell XPS, Samsung Galaxy S series, Google Pixel, Huawei Mate/P series, and other standard USB-C devices

Specifications

Model	Charging (native)	Charging **	Video Output **	Data Transfer **
14-3100-010	5A / 48V max	5A / 48V max	4K@60Hz	10Gbps
14-3100-020	5A / 48V max	3A / 48V max	4K@60Hz	5Gbps
14-3100-030	3A / 48V max	3A / 48V max	4K@60Hz	5Gbps (high-performance devices) / 480Mbps (USB 2.0, general devices)

** Based on 1M cable plugged in.

Installation Notes

For best performance, keep total cable length to 1 metre or less
Do not daisy-chain more than two extension cables in series — this will reduce data transmission speed and available current
Confirm both the source device and the display support USB-C video output (DisplayPort Alt Mode) before use for video transmission

Compatible With

MacBook Pro (2016/2017 and later), Dell XPS 13/15, Samsung Galaxy S8/S9/Note 8, Google Pixel/Pixel C/Nexus 5X/6P, Huawei P/Mate series, Microsoft Surface Book, Google Chromebook Pixel, and other standard USB-C enabled laptops, tablets, and smartphones.
