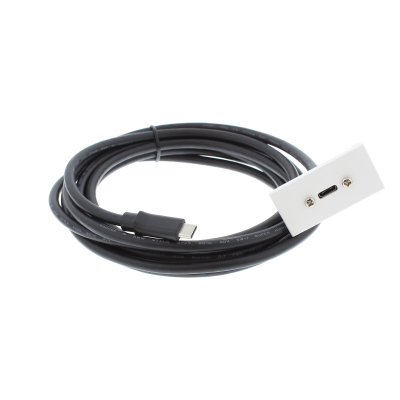

USB Type C Euro Module 1 Metre

USB C Euro Module. 1 Metre. 3.1v 10G, 3A.

Product Code: 53-3100-010-W

1 Metre USB Type C Euro Module. Version 3.1v, Gen2  10g 3 Amps. Standard euro module size compatible with standard UK frames.

View Specification

£12.99 ex Vat

£15.59 Inc.VAT

Availability: Medium Stock

Delivery Available from £4.49


USB Type C Connection

Gen 2

1 Metres in length

50 x 25mm Clip in module size. Standard AV modular clip in

Panel Mount Female to Male Plug

10G, 3A

USB Revision 3.1


Technical Information:

1. Voltage rating: 30V 2.

2. Temperature rating: 80℃

3. UL 2725

4. Dielectric strength: AC-500V/1 sec MIN 5.

5. Insulation resistance: FOAM-PE-SKIN/HDPE/TPEE DC-500V 100MΩ.KM 20℃

6. Conductor resistance. 30AWG-381 32AWG-595 Ω/KM MAX at 20℃,22AWG-59.4 Ω/KM MAX at 20℃

7. Spark test:AC- 1500V/In the air


Additional Cable Info:

1. Tensile strength test are before aging:

JACKET:1500PSI min Aged:70% min

2. Elongation before aging:

JACKET:100% min Aged:65% min
