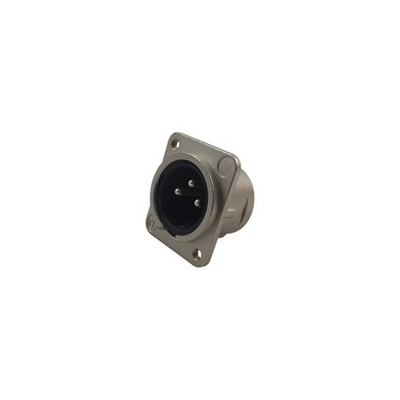

XLR Panel Plug 3 Way Neutrik NC3MDM3L
Product Code: 11-2005
XLR 3 Pin Panel Plug to rear solder - 3 Way Neutrik NC3MDM3L
View SpecificationAvailability:
3 Pin XLR Panel Plug to rear solder -
Latch locking mechanism
Separate ground contact to mating connector shell and front panel
Front or rear panel mount
UL94HB Flammability rating
IP40 Protection rating
Complies with IEC 61076-2-103 standard
Solderability complies with IEC 68-2-20 standard
<=5mR Contact resistance
>10GR Insulation resistance
7.5A Current rating per contact
<50V Voltage rating
-30 to +80°C Temperature range
