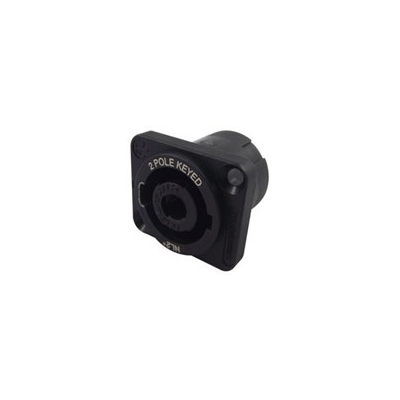

2 Pole Speakon Connector Socket Neutrik NL2MP
The NL2MP from Neutrik is a 2 pole speakON male chassis connector with black D-size flange and 3/16" flat tabs.
View SpecificationAvailability:
The NL2MP from Neutrik is a 2 pole speakON male chassis connector with black D-size flange and 3/16" flat tabs. This speakON panel mount connector is a standard chassis connector for loudspeaker / amplifier interconnections. It has a unique metal locking system, making contact only once fully locked.
Current rating 30A continuous, 40A audio with 50% duty cycle
Polyamide 6 30% Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Countersunk through holes
Greater than 5000 mating cycles
Bronze with silver contacts and black plated polyamide shell
Rated insulation voltage is 250V
Flammability rating meets UL94 HB
Temperature range from -30°C to +80°C
