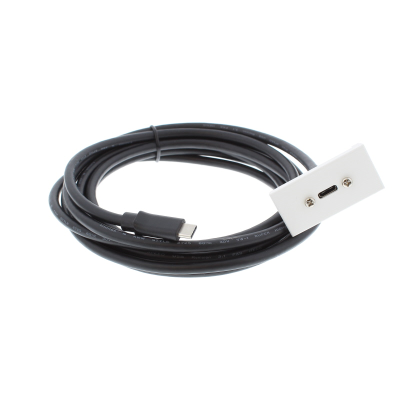

USB C Euro Module. 2 Metre. 3.1v 5G, 3A.
2 Metre USB Type C Euro Module. Version 3.1v Gen 1, 5g 3 Amps. Standard euro module size compatible with standard UK frames.
View SpecificationAvailability:
Delivery Available from £4.49
Features:
USB Type C Connection
Gen 1
2 Metres in length
50 x 25mm Clip in module size. Standard AV modular clip in
Panel Mount Female to Male Plug
5G, 3A
USB Revision 3.1
Technical Information:
1. Voltage rating: 30V 2.
2. Temperature rating: 80℃
3. UL 2725
4. Dielectric strength: AC-500V/1 sec MIN 5.
5. Insulation resistance: FOAM-PE-SKIN/HDPE/TPEE DC-500V 100MΩ.KM MIN.at 20℃
6. Conductor resistance. 30AWG-381 32AWG-595 Ω/KM MAX at 20℃,22AWG-59.4 Ω/KM MAX at 20℃
7. Spark test:AC- 1500V/In the air
Additional Cable Info:
1. Tensile strength test are before aging:
JACKET:1500PSI min Aged:70% min
2. Elongation before aging:
JACKET:100% min Aged:65% min
